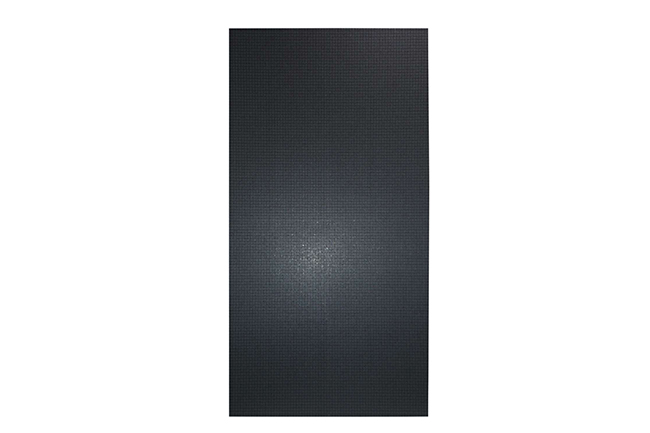

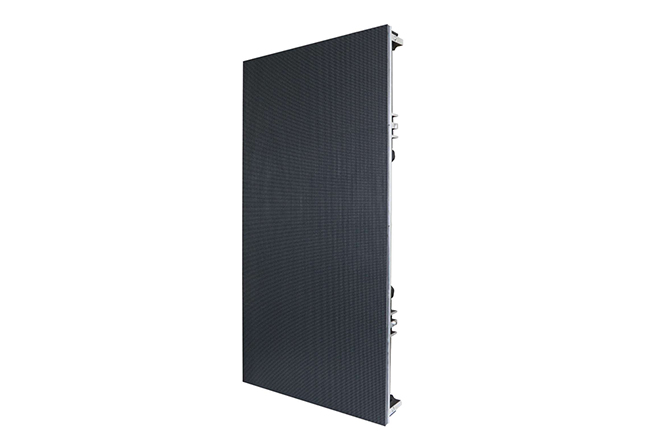

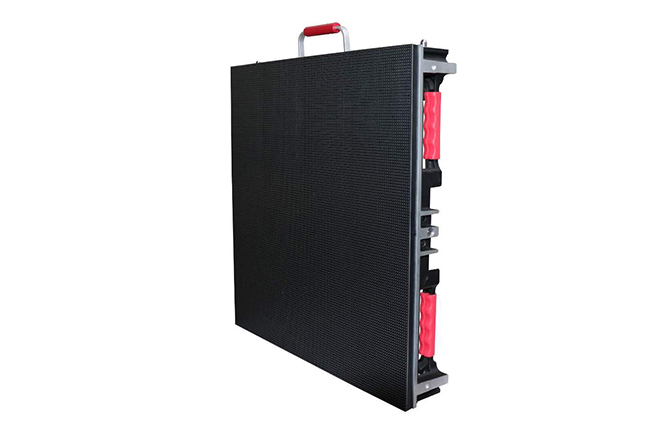

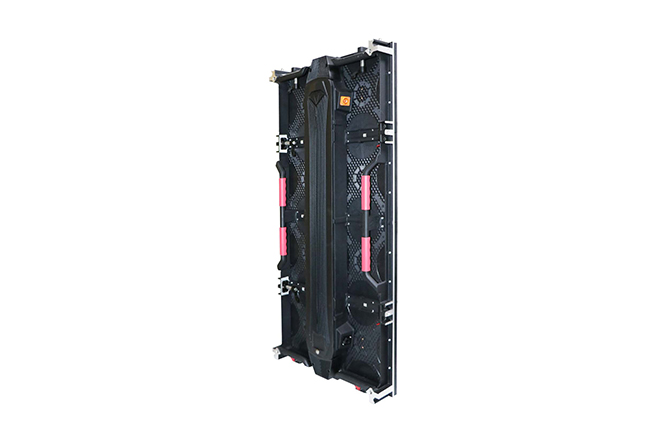

I Series Outdoor LED Screen

Item: 500*500/*1000 Outdoor LED Video Wall:

Applications: Outdoor Event Rental, Outdoor Concerts, Sport Events, Festivals, Stage Background.

Certificates: FCC, CE, EMC, LVD.

Services: 5 Years Warranty

PRODUCT DESCRIPTION

Outdoor Rental LED Screen Specification
ItemI Series I Series I Series
Pixe Pictch3.91mm4.81mm5.95mm
Led encapsulationSMD1921SMD2727SMD2727
Scan Mode1/8 Scan1/13 Scan1/7 Scan
Pixe Per Sq.m65,536 Pixel43,264 Pixel28,224Pixel

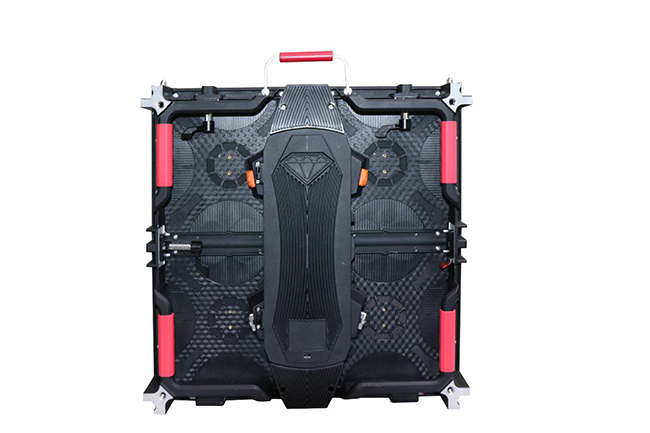

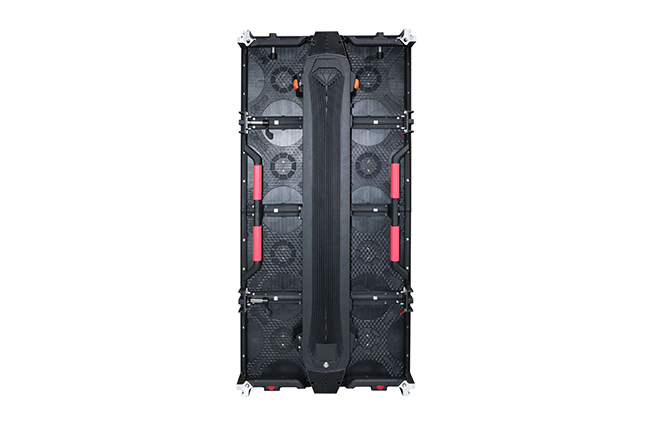

Maintenance methodsRear Service
Cabinet MaterialDie Casting Aluminum
Module Size(W*H)250*250mm
Cabinet Size(W*H*D)500*500/500*1000*80mm
Refresh Rate3840hz
Color temperature7000K ±500(Adjustable)
Grey Scale14-16bits
Cabinet Weight14KG/Pieces
Brightness(Nits/㎡)5500-6000nits
Average Power Consumption350-400Watt/㎡
Max Power Consumption950Watt/㎡
IP ProtectionIP65 Front/IP54 Rear
Operating Temperature-20°C to 50°C
Working Voltage110-240Volt(50-60hz)
