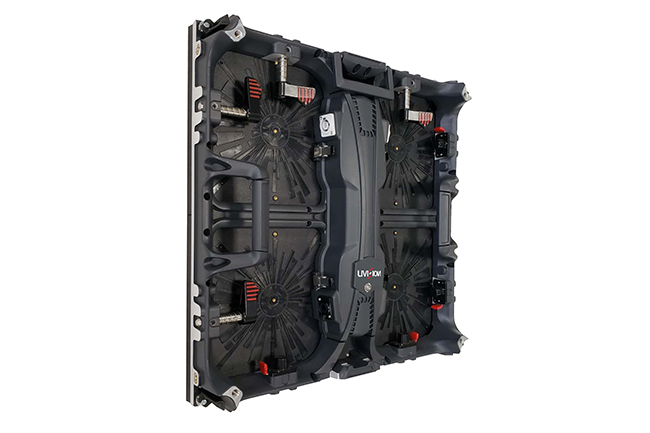

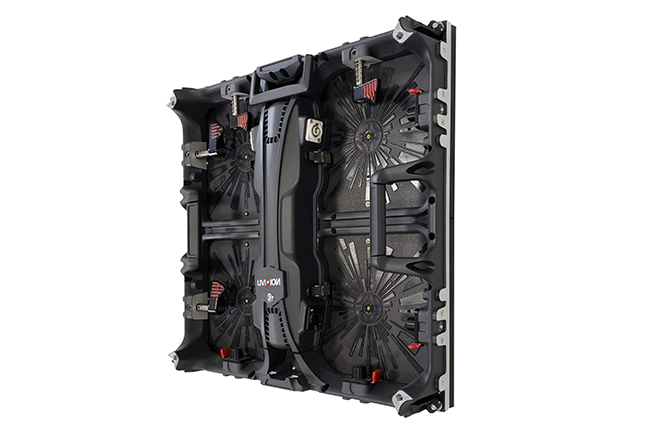

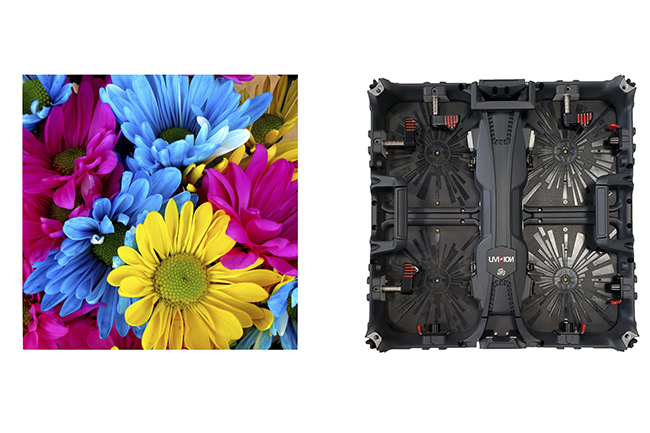

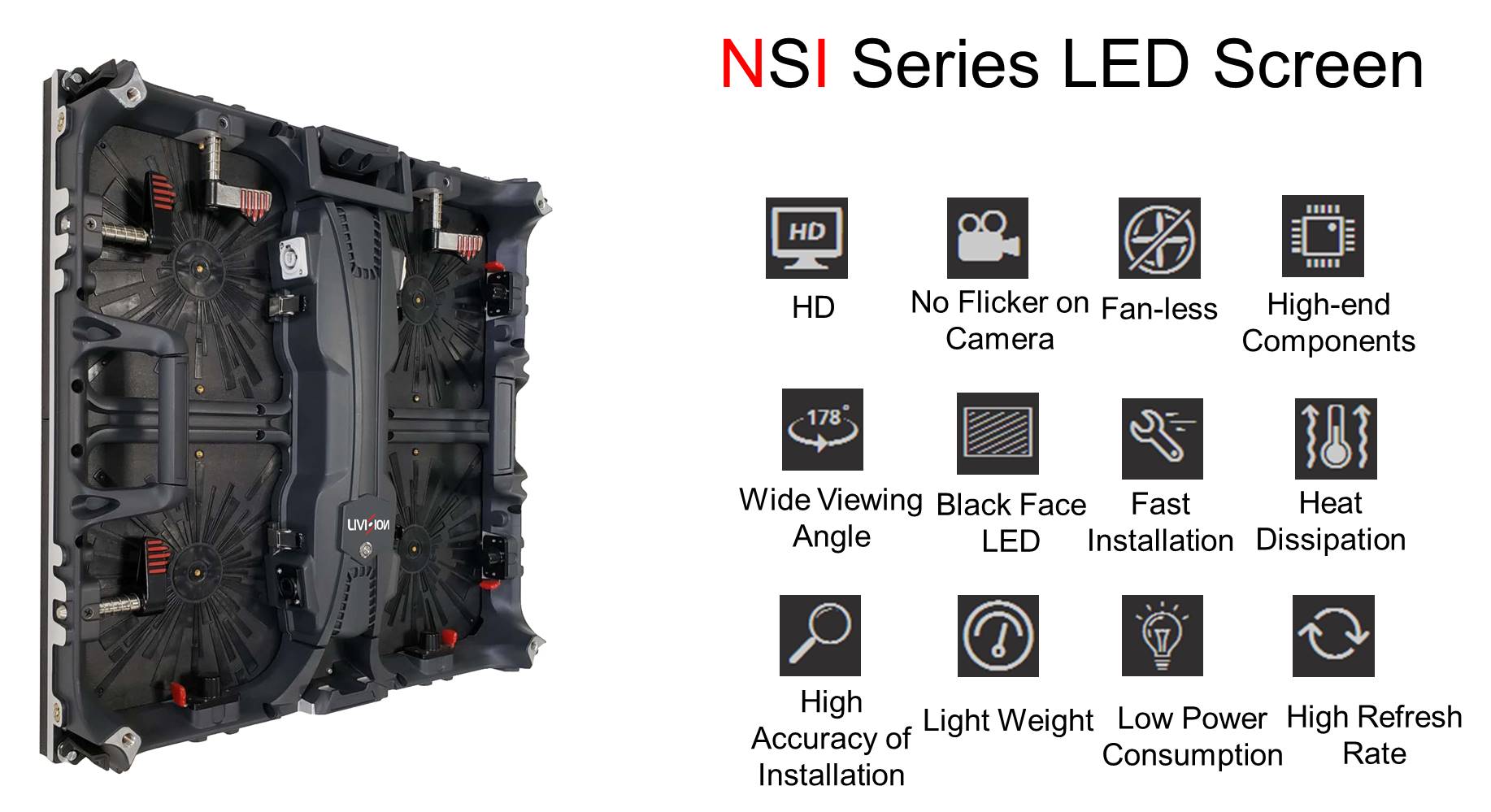

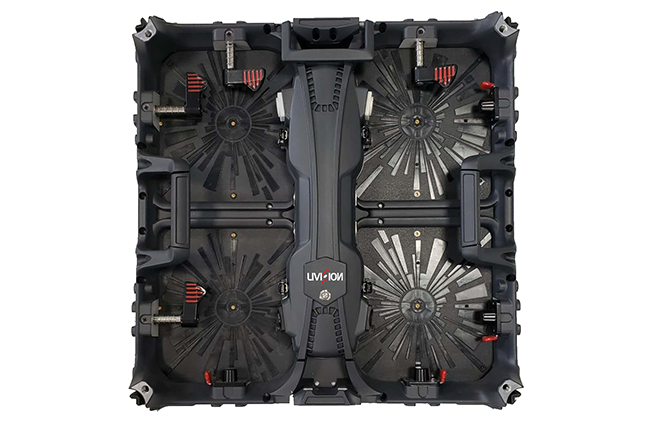

NSI Series Indoor LED Screens

Item: 500*500 Indoor LED Screen:

Applications: Conferences, Concerts, Stage Background, TV Stations, Shopping Centers, Church LED Video Wall.

Certificates: FCC, CE, EMC, LVD.

Services: 5 Years Warranty


PRODUCT DESCRIPTION

NSI Series Indoor LED ScreensNSI Series Indoor LED ScreensNSI Series Indoor LED ScreensNSI Series Indoor LED ScreensSi Series Indoor LED ScreenSi Series Indoor LED Screen

Items

Parameter

Pixel   Pitch

PH2.976mm

PH3.9mm

PH2.6mm

Module

 Resolution(W*H)

168*168

128*128

192*192

Pixel

 Configuration

1R1G1B(in   3 n 1)

LED

 Encapsulation

Black   SMD 1515

SMD   2121

Black   SMD 1515

Pixel   Density

112896   Pixel/㎡

65536Pixel/   ㎡

147456   Pixel/㎡

Driving   Method

1/16   Scan

1/16   Scan

1/16   Scan

Refresh

Frequency

≥3840Hz

Driver   IC

Special   constant current IC with high refresh rate & high Greyscale

Grey   Scale

14Bit

Cabinet   Size

500*500mm

White   balance

 Brightness

1200cd/   ㎡

1200cd/   ㎡

1200cd/   ㎡

Viewing   Angle

Horizontal   140° Vertical 120°

Optimal   Viewing

Distance

≥3m

≥4m

≥2m

Working   Voltage

AC    220V/110V ±10%

Net   weight

7Kg/pcs

7Kg/pcs

7Kg/pcs
