O Series HD Small Pixel LED Video Wall

Item: 16*9 HD Small Pixel LED Video Wall.

Applications: TV Stations, Conferences, Home Theaters

Certificates: FCC, CE, EMC, LVD.

Services: 5 Years Warranty

PRODUCT DESCRIPTION

  • 16 Bit Image Processing

    16 Bit Image Processing

  • Black Face SMD

    Black Face SMD

  • Electromagnetic Compatibility(EMC

    Electromagnetic Compatibility(EMC

  • Fan-less

    Fan-less

  • Fast Installation

    Fast Installation

  • Fixed Installation

    Fixed Installation

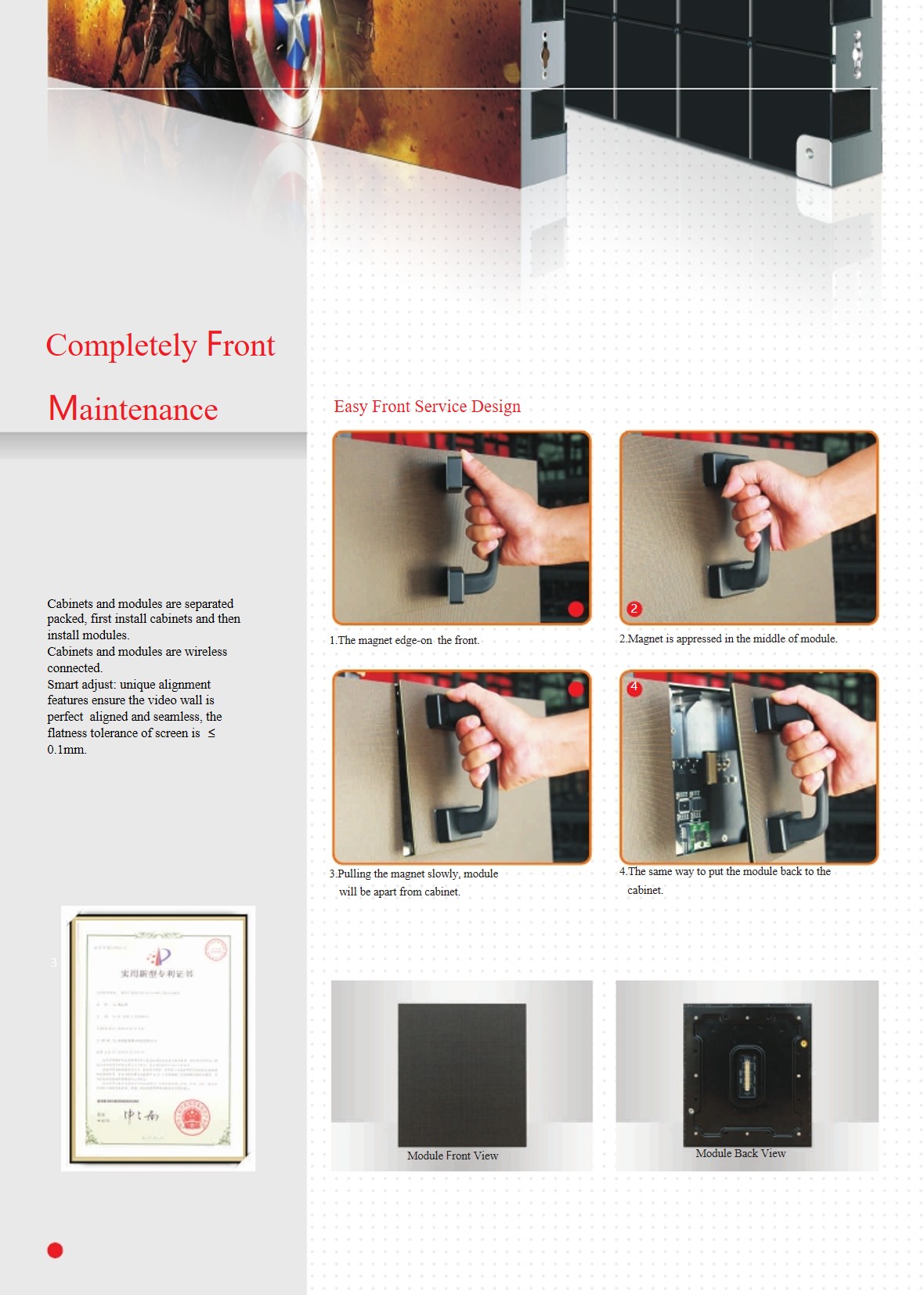

  • Front Serviceable, Easy Access

    Front Serviceable, Easy Access

  • HD

    HD

  • Heat Dissipation

    Heat Dissipation

  • High Accuracy Of Installation, Diecast System

    High Accuracy Of Installation, Diecast System

  • High Brightness

    High Brightness

  • High End Components

    High End Components

  • High Refresh Rate

    High Refresh Rate

  • Indoor

    Indoor

  • Light Weight

    Light Weight

  • Low Power Consumption

    Low Power Consumption

  • No Flicker on Camera

    No Flicker on Camera

  • Portable

    Portable

  • Seamless Display

    Seamless Display

  • Ultrathin Module

    Ultrathin Module

  • Wide Viewing Angle

    Wide Viewing Angle


O Series HD Small Pixel LED Video Wall

O Series HD Small Pixel LED Video Wall

O Series HD Small Pixel LED Video Wall

O Series HD Small Pixel LED Video Wall

O Series HD Small Pixel LED Video WallO Series HD Small Pixel LED Video Wall

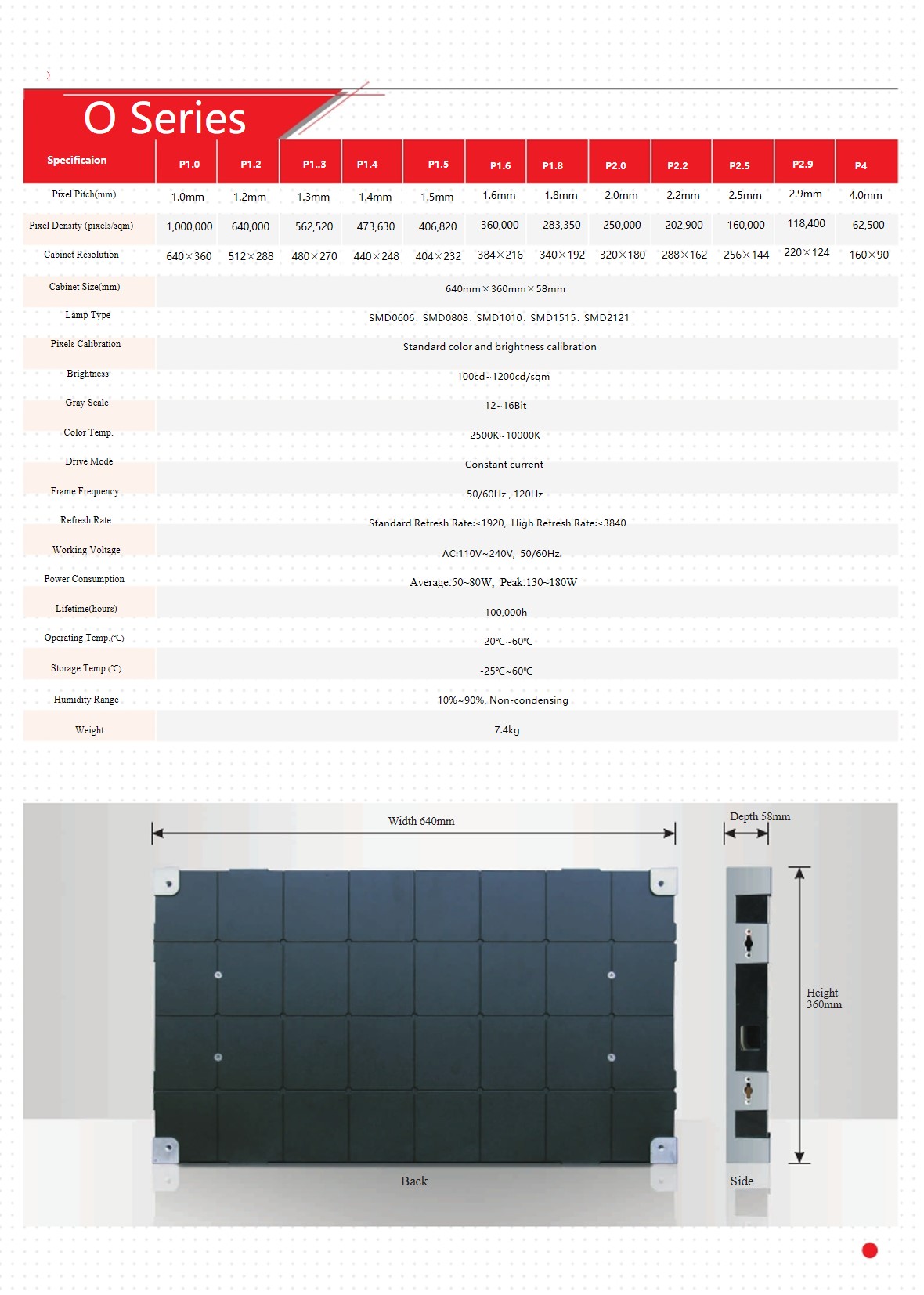

Small Pixel 16:9 LED Screen Specification
ItemO Series O Series O Series O Series
Pixe Pictch1.25mm1.56mm1.875mm2.5mm
Scan Mode1/30 Scan1/24 Scan1/30 Scan1/30 Scan
Pixe Per Sq.m640,000 Pixel409,600 Pixel284,444Pixel160,000 Pixel
Led encapsulationSMD1010
Maintenance methodsFront/Rear Service Both
Cabinet MaterialDie Casting Aluminum
Module Size(W*H)160*180mm
Cabinet Size(W*H*D)640*360*58mm
Refresh Rate3840hz
Color temperature10000K ±500(Adjustable)
Grey Scale16bits
Cabinet Weight7.4KG/Pieces
Brightness(Nits/㎡)1000nits
Average Power Consumption100Watt/Pieces
Max Power Consumption200Watt/Pieces
IP ProtectionIP43
Operating Temperature-10°C to 40°C
Working Voltage110-240Volt(50-60hz)
