Si Series Indoor LED Screen

Item: 500*500 Indoor LED Screen:

Applications: Conferences, Concerts, Stage Background, TV Stations, Shopping Centers, Church LED Video Wall.

Certificates: FCC, CE, EMC, LVD.

Services: 5 Years Warranty


PRODUCT DESCRIPTION


Si Series Indoor LED Screen

Si Series Indoor LED Screen

Si Series Indoor LED Screen

Si Series Indoor LED Screen

Si Series Indoor LED Screen

Indoor Rental LED Screen Specification
ItemSi Series Si Series Si Series Si Series
Pixe Pictch2.6mm2.97mm3.91mm3.91mm
Led encapsulationSMD1514SMD1515SMD2121SMD1919
Scan Mode1/24 Scan1/14 Scan1/16 Scan1/16 Scan
Pixe Per Sq.m147,456 Pixel112,896 Pixel65,536 Pixel43,264 Pixel

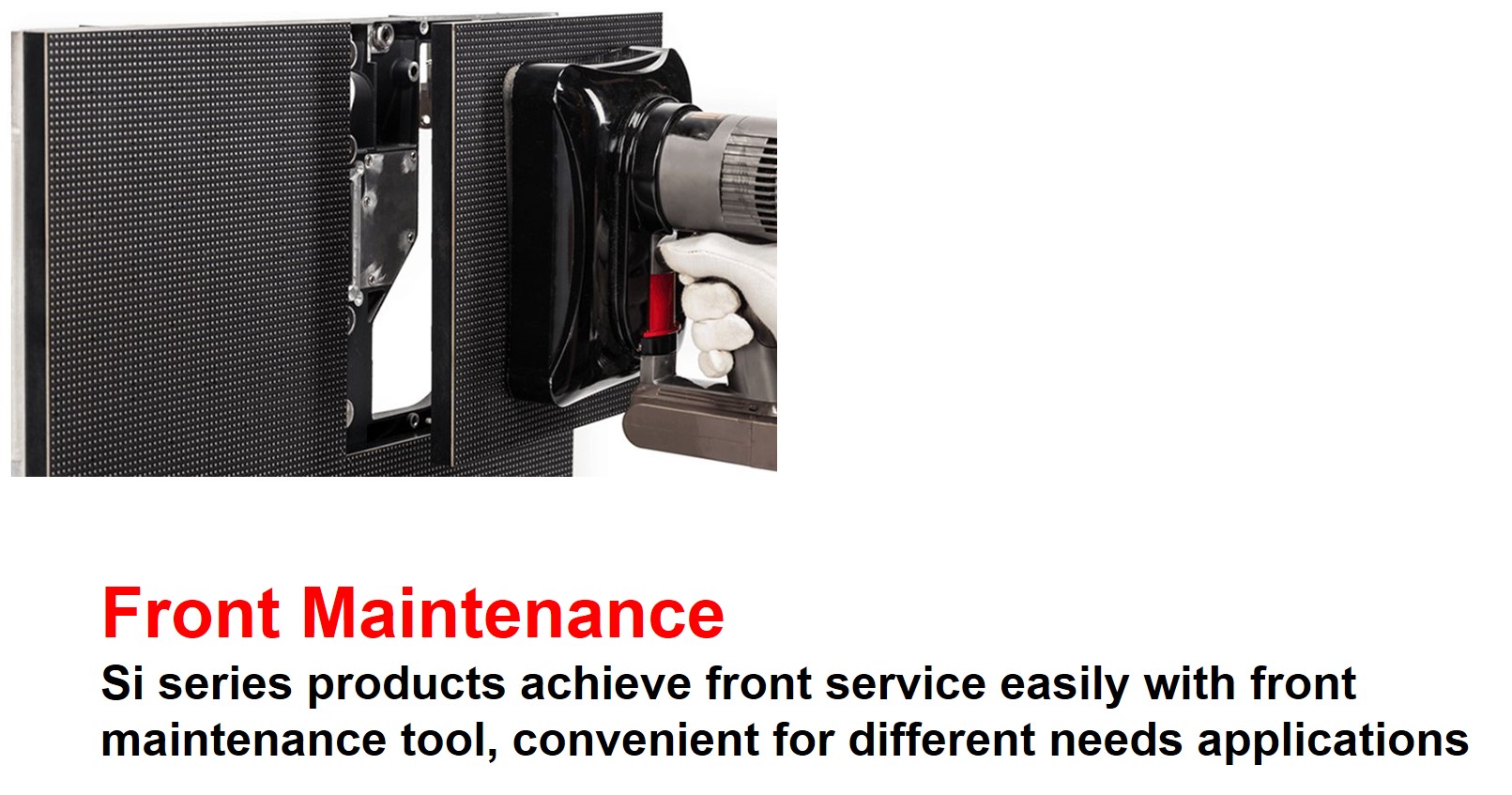

Maintenance methodsFront/Rear Service Both

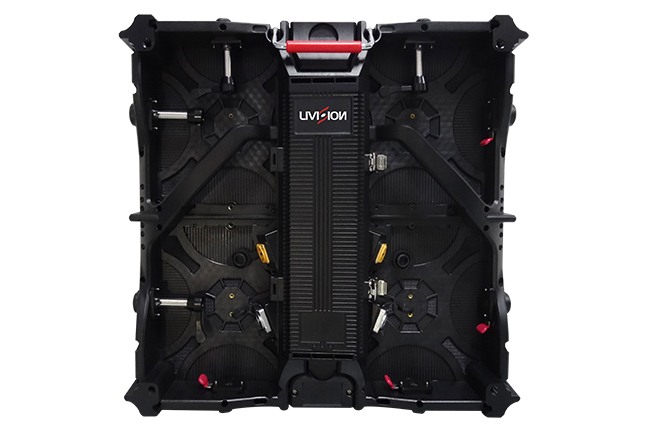

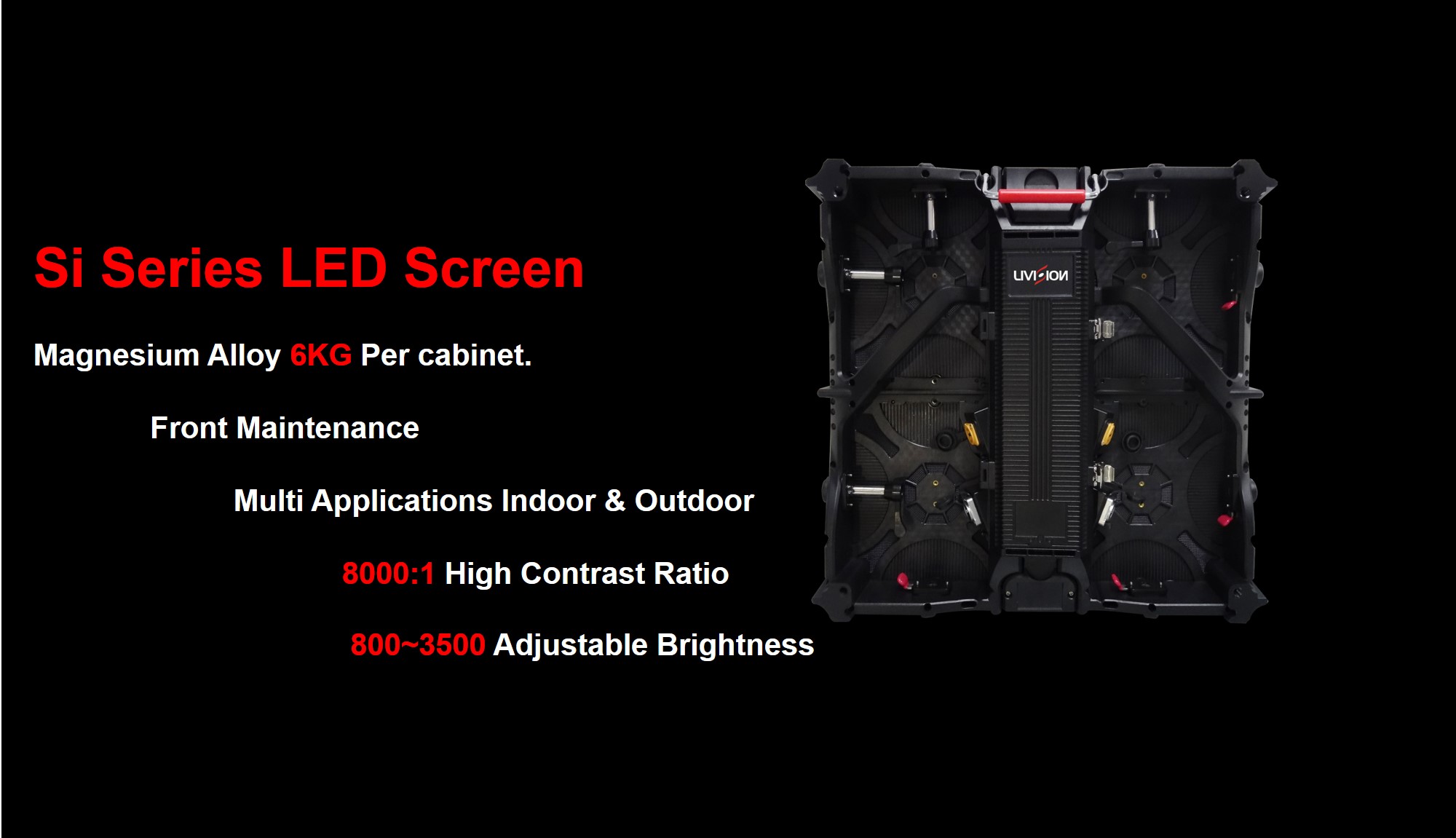

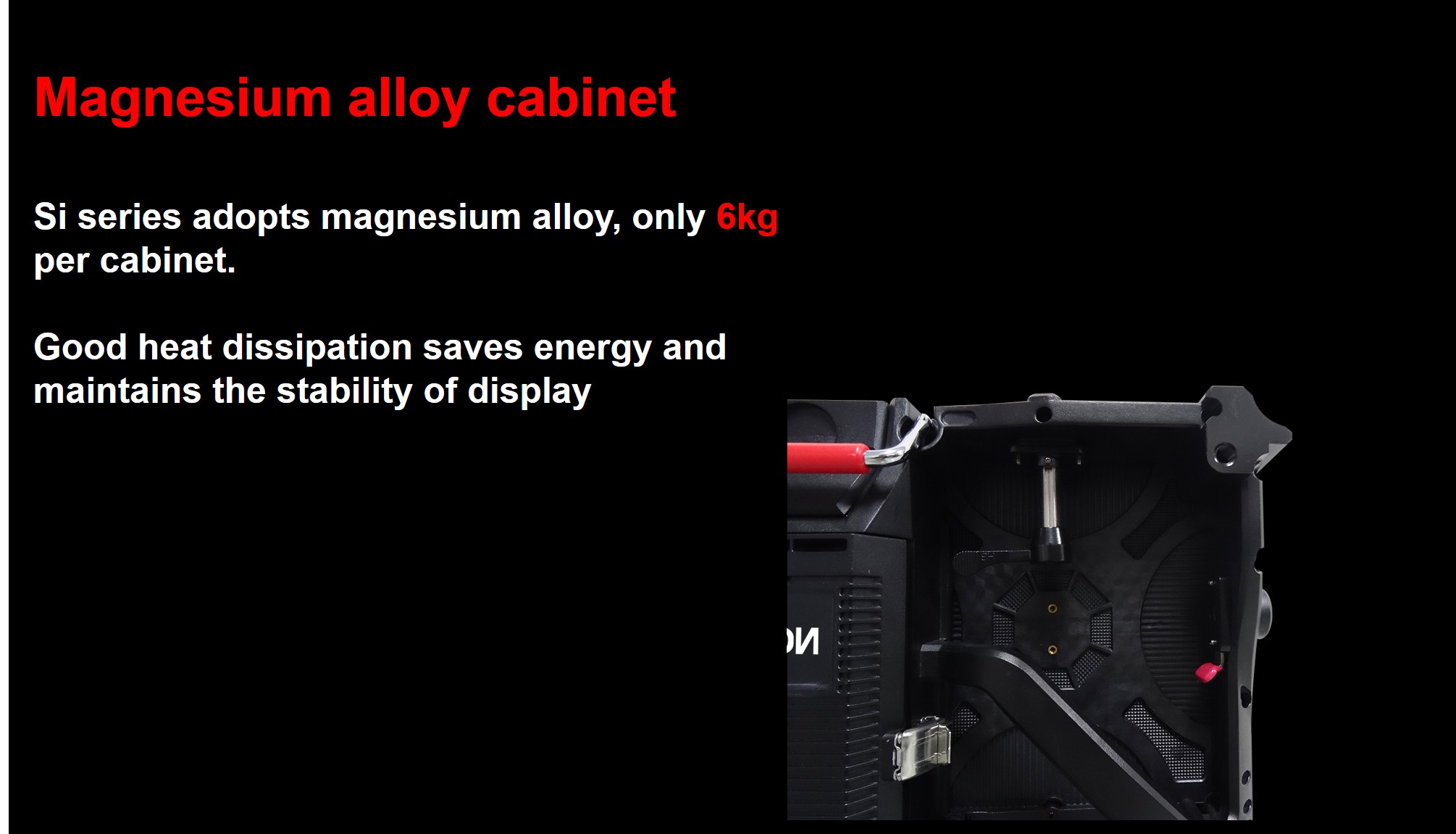

Cabinet MaterialMagnesium Alloy
Module Size(W*H)250*250mm
Cabinet Size(W*H*D)500*500*80mm
Refresh Rate3840hz
Color temperature8000K ±500(Adjustable)
Grey Scale14-16bits
Cabinet Weight6KG/Pieces
Brightness(Nits/㎡)1200nits/800~3500nits
Average Power Consumption350-400Watt/㎡
Max Power Consumption800Watt/㎡
IP ProtectionIP43/IP65
Operating Temperature-20°C to 50°C
Working Voltage110-240Volt(50-60hz)
