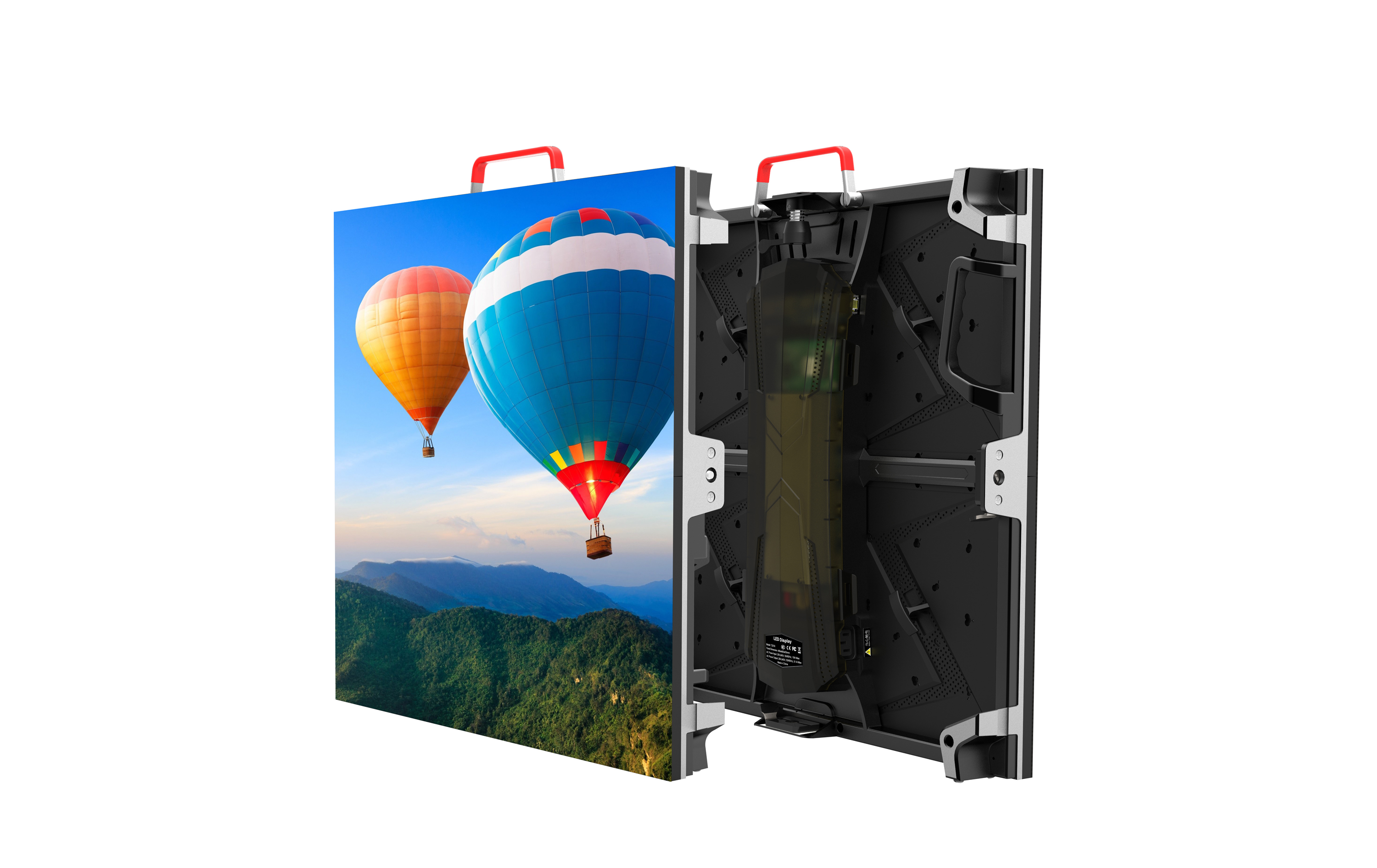

ON Series Small Pixel LED Screen

Item:  480*480*63 HD Small Pixel LED Video Wall.

Applications: Control Room, Stage , TV Stations, Meeting Room. Monitoring Center, Surveillance Center

Certificates: FCC, CE, EMC, LVD.

Services: 5 Years Warranty


PRODUCT DESCRIPTION

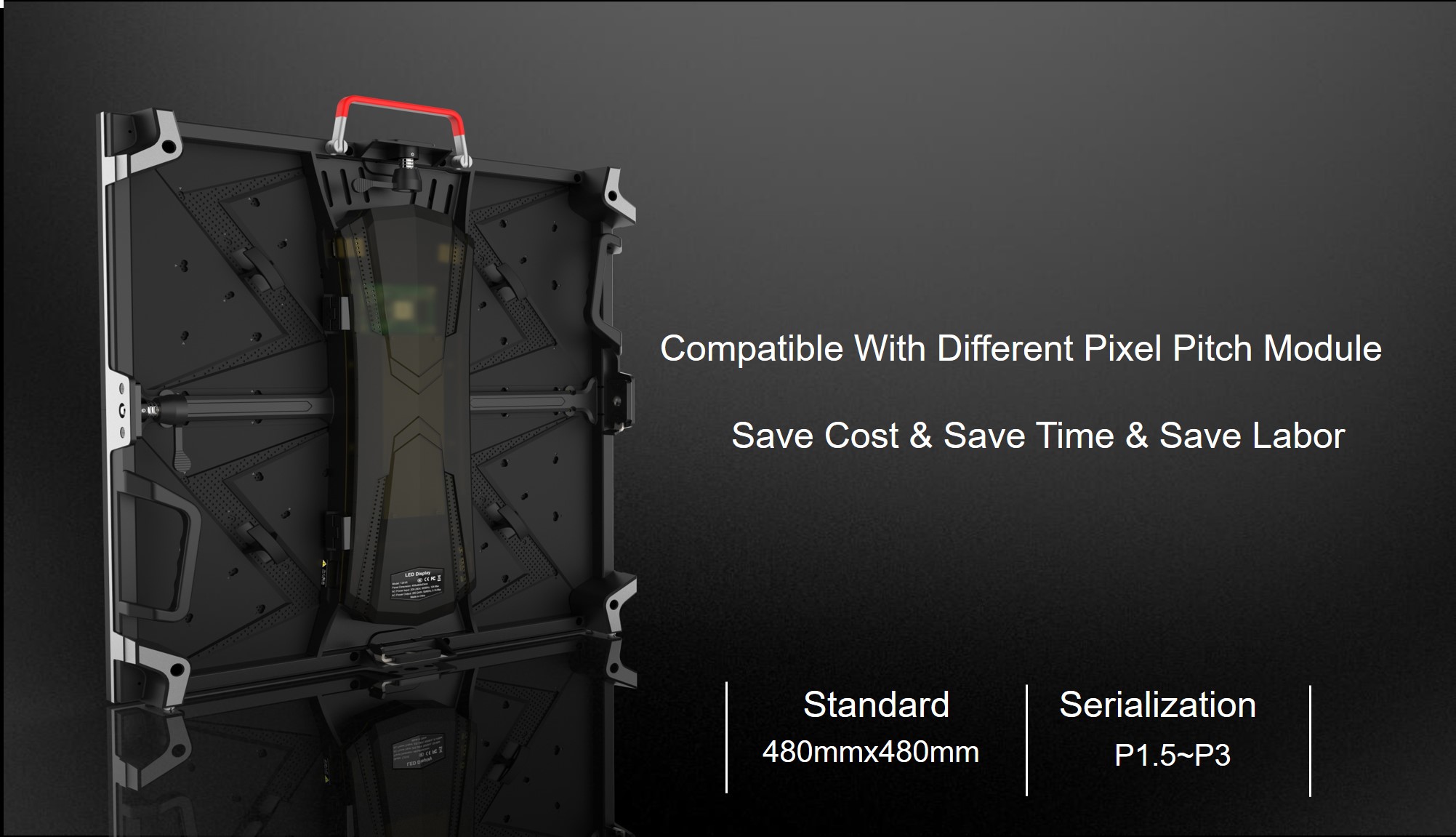

ON Series Small Pixel LED Screen

ON Series Small Pixel LED Screen

ON Series Small Pixel LED Screen

ON Series Small Pixel LED Screen

ON Series Small Pixel LED Screen

ON Series Small Pixel LED Screen

ON Series Small Pixel LED Screen


Small Pixel LED Screen Specification
ItemON Series ON Series ON Series ON Series
Pixe Pictch1.579mm1.875mm2.5mm3mm
Scan Mode1/31 Scan1/32 Scan1/32 Scan1/20 Scan
Pixe Per Sq.m401,111 Pixel284,444Pixe160,000Pixel111,111 Pixel
Led encapsulationSMD1010/SMD1515/SMD2020

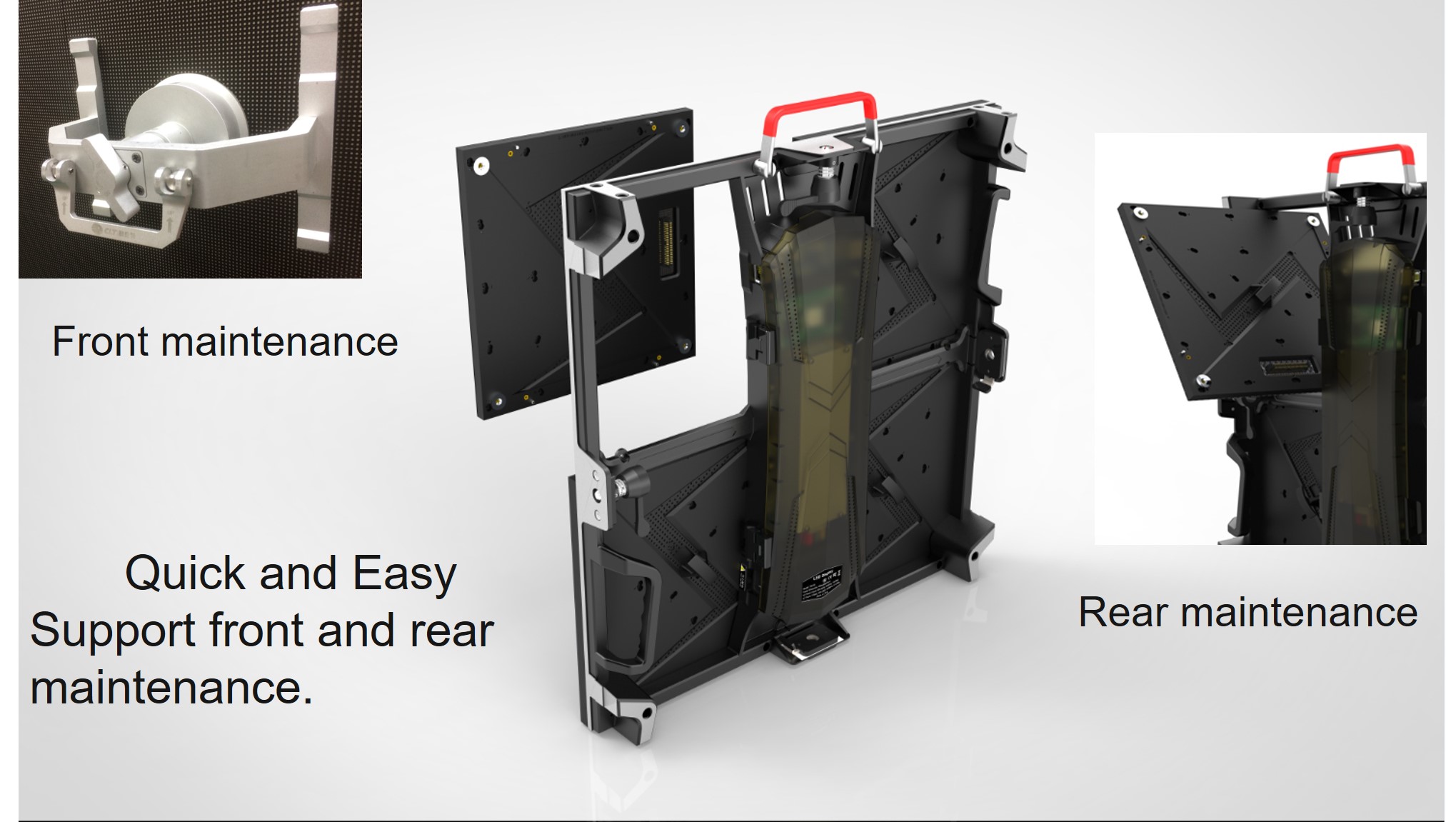

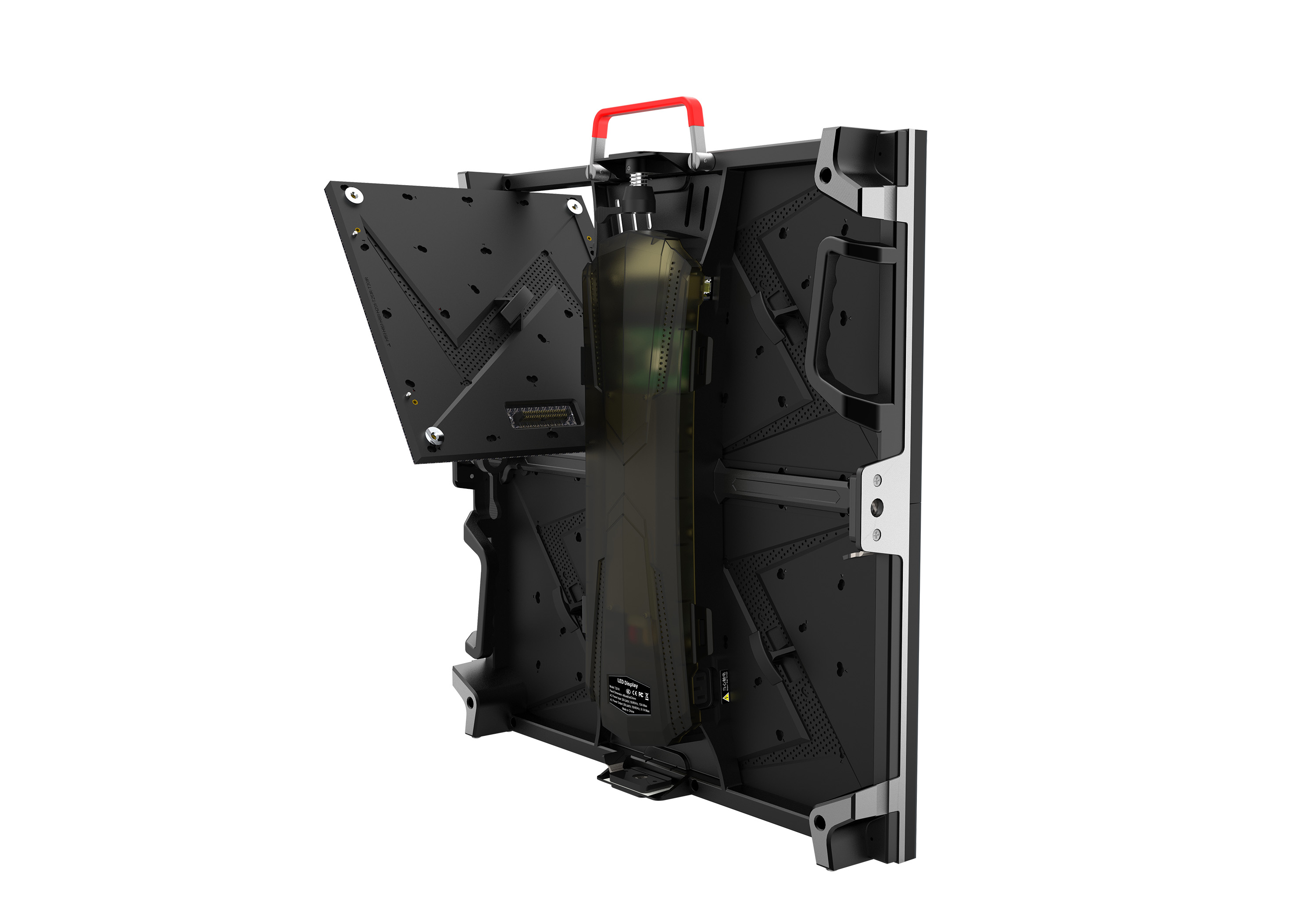

Maintenance methodsFront/Rear Service Both

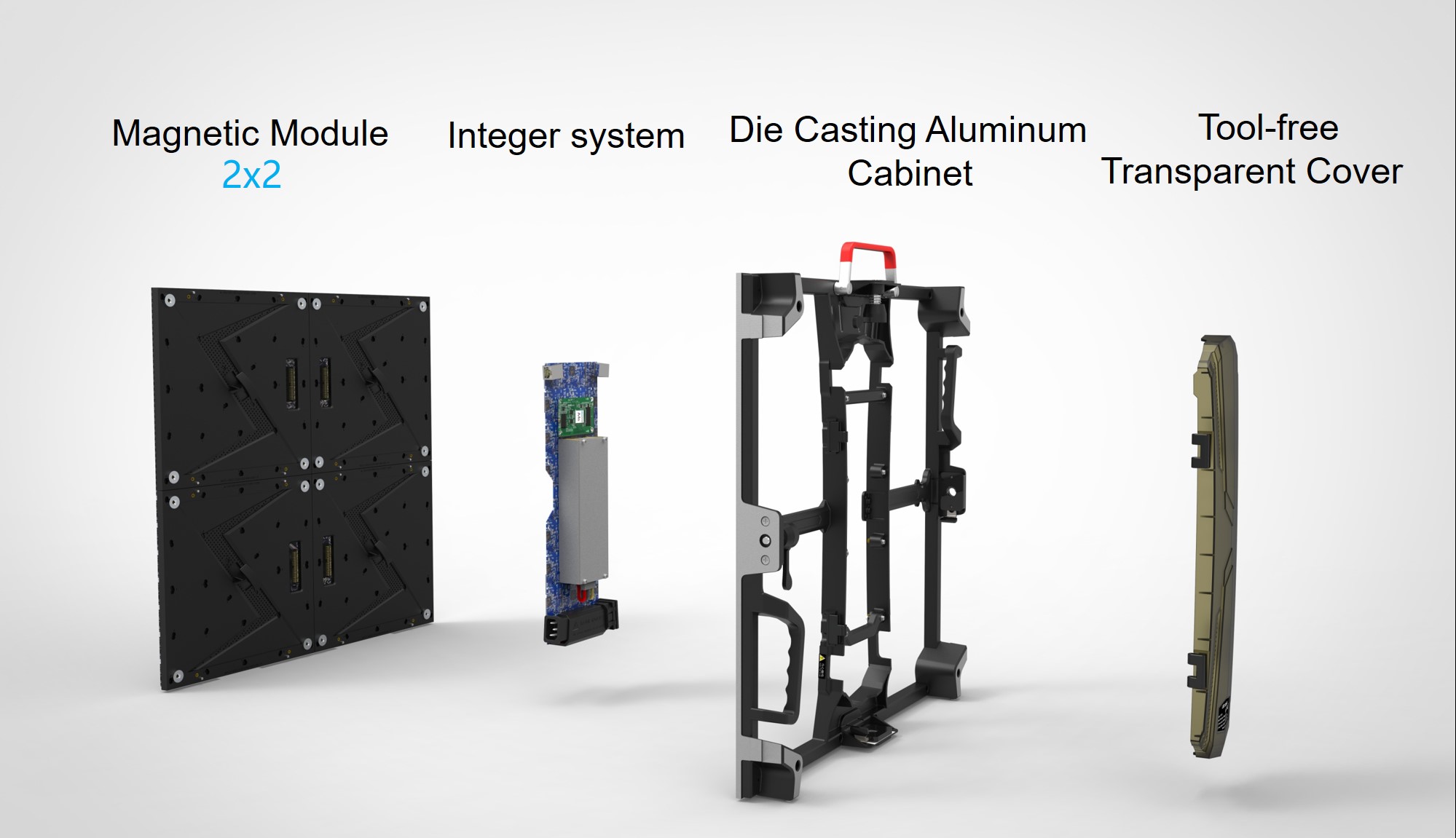

Cabinet MaterialDie Casting Aluminum
Module Size(W*H)240*240mm
Cabinet Size(W*H*D)480*480*63mm
Refresh Rate3840hz
Color temperature10000K ±500(Adjustable)
Grey Scale16bits
Cabinet Weight5.5KG/Pieces
Brightness(Nits/㎡)1000nits
Average Power Consumption100Watt/Pieces
Max Power Consumption200Watt/Pieces
IP ProtectionIP43
Operating Temperature-10°C to 40°C
Working Voltage110-240Volt(50-60hz)
