Analysis of Seven Core Parameters Of LED Display Module

Feb. 19, 2019

The LED module is the core part of the display. It is a product that is equipped with an LED circuit board and a casing, and is arranged by enclosing the LED lamp beads according to certain rules, and then adding some waterproof treatment. With the continuous development of the LED display such as Outdoor Rental LED Display industry and the increasing application requirements, the functions and functions of LED modules are even more important.

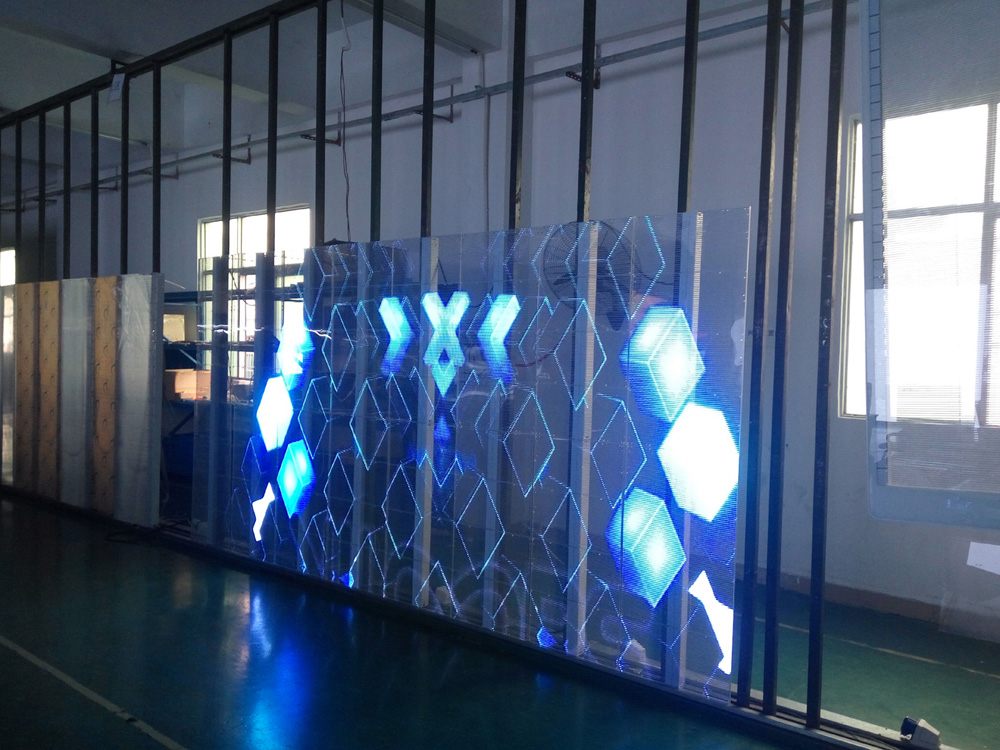

Glass-LED screen Transparent

So, today we will come together to understand what the seven parameters of the LED module are:

First, LED module colorof the led display such as Indoor Rental LED Screen

It is the most basic parameter in LED modules, and different colors are applied in different occasions. According to the type of color, it can be divided into two types: single color and full color single point control.

Second, LED module brightness of the led screen such as the Stand Advertising LED Poster

When it comes to brightness, we think of the word high brightness. This parameter is a parameter that people pay more attention to. Brightness is a complicated problem in LEDs. The brightness we usually say in LED modules is usually the intensity and transparency of the LEDs, which is usually the sum of the degrees associated with each module.

Third, LED module illumination angle

The illumination angle of an LED module without a lens is mainly determined by the LED lamp bead. The different illumination angles of the LED lamp bead are also different. Generally, the illumination angle of the LED lamp bead provided by the manufacturer is the angle of the LED module.

Fourth, LED module operating temperature

The normal operating temperature of the LED module is usually between -18 ° C and 58 ° C. If the required range is high, special treatment, such as air conditioning or exhaust fan, is required.

Fifth, LED module voltage

It is a very important parameter in the LED module, and the current 12V low voltage module is more common. When connecting the power supply and the control system, be sure to check the correctness of the voltage value before powering on, otherwise the LED module will be damaged.

Sixth, the size of the LED module. Usually refers to the length, width and height dimensions mentioned.

Seventh, LED module waterproof rating

This is mainly for the outdoor, it is an important indicator to ensure that the LED module can work in the outdoor long-term. It is usually best to achieve an IP65 rating in the open air.
